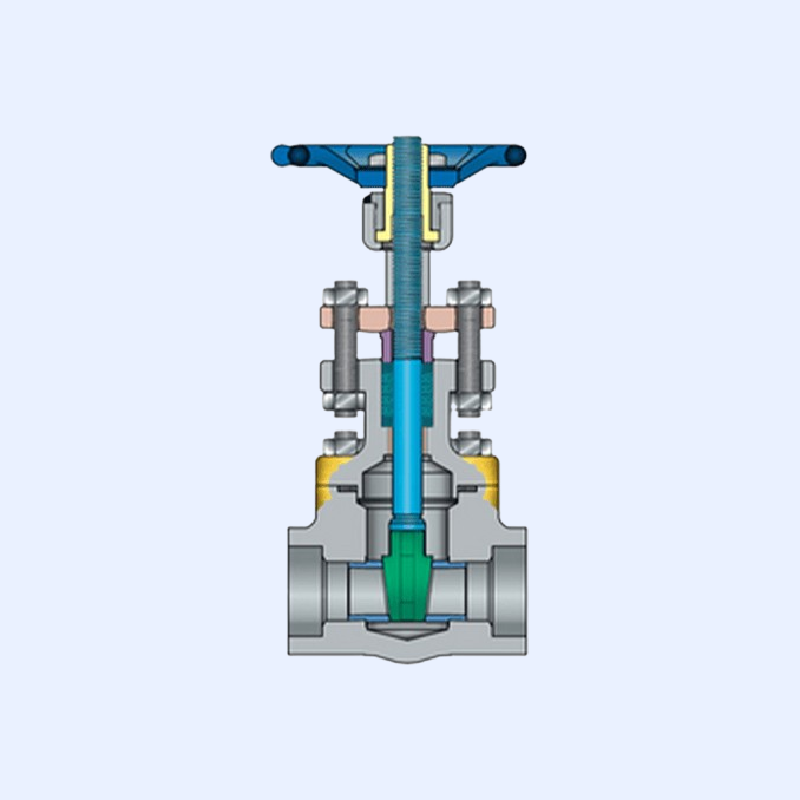

API 602 HF acid small forged gate valves
Description
Flowcen's API 602 HF Acid Small Forged Gate Valves are meticulously engineered for outstanding performance in highly corrosive environments. These valves provide precise fluid flow control and effective backflow prevention, making them perfect for acid handling applications. With exceptional durability and longevity, they are designed to withstand aggressive conditions, ensuring reliable operation in critical processes.
Features and Benefits
Product Specifications:
- Size Range: NPS 1/2 - 2 (DN 15 - 50)
- Pressure Rating: ASME Class 150 - 800
- Standard Connections: Threaded, Socket Weld, Flanged, Butt Weld
- Material Options: Forged Steel (Stainless 316, 304; Duplex; Hastelloy; Monel; Inconel)
Key Features:
- Flowcen is dedicated to reducing emissions beyond industry standards while providing top-quality products, offering a comprehensive line of API 602 HF acid valves, including gate, globe, and check valves.
- The packing chamber features a nickel overlay to protect against severe alkylation conditions and ensure low fugitive emissions.
- Solid age-hardened Monel stem enhances strength and corrosion resistance.
- Precision-machined bonnet joint with a special surface finish extends service life.
- Fully encapsulated gasket design with metal-to-metal body-to-bonnet contact for optimal compression.
- For welded bonnet valves, body and bonnet threads are strength-welded, with the bonnet torqued to engineered values for double leak protection.
- Repairable two-piece stem drive.
- Available in API 602 conventional port and full port designs.
- A wide variety of end connections tailored to client requirements, including flanged, butt weld, socket weld, NPT, and weld stubs.
- HF acid-detecting paint allows for immediate visual detection when exposed to acid or vapors, ensuring valve integrity.
